Features:
1).BMW AD have the HITAG 2 features, it is V3.1 Very easy you can program key or transponder to bmw vehicles equiped with CAS module. Programming key is required to have read eeprom of immobilizer, to load into the software to specify what position you want to program this key or transponder, and then modify the eeprom dump and program it into the immobilizer.Also you can read and program internal key memory where are stored ODOMETER, VIN.
2)BMW AD OBDII Connector have the K line and the CAN BUS system.can work the BMW DASH /BMW INPA K+CAN /BMW SCNNER 1.40 .
Supported Models
- 1 Series: E81/E82/E87/E88
- 3 Series: E30/E36/E46/E90/E91/E92/E93
- 5 Series: E28/E34/E39/E60/E61
- 6 Series: E24/E63/E64
- 7 Series: E23/E32/E38/E65
- 8 Series: E31
- X Series: X3-E83, X5-E53, X5-E70, X5-E71
- Z Series: Z1-E30, Z3-E36, Z4-E85/E86, Z5-E52
- MINI Series: MINI-R50/R52/R53/R55/R56/R57
Supported Systems
All systems of BMW series and OBD-II diagnostic system, including:
- Engine system
- Auto Transmission
- SRS
- ABS
- Cruise system
- Air-condition system
- EWS
- LKE
BUS etc.
Hitag2 programmer is universal key programmer, with additional option of key programming from dump. Just insert blank key or appropriate transponder you need to program. Device detects transponder type and will do everything automatically!
Distinctive features of Hitag2 programmer:
ALL types of Hitag2 transponders are fully supported!
Widest range of supported cars, using Hitag2 protocol!
Deep research work, has allowed us to make device, as much as possible correctly adding keys in the car, without damage to its functionality!
Correct BMW key programming - RADIO REMOTE is working!
Supported transponder types:
PCF 7936
PCF 7941
PCF 7942/44
PCF 7943
PCF 7945
PCF 7946
PCF 7952
Supported transponder modes:
Password mode
Crypto mode
Supported protocols:
Manchester
Biphase
Key generation from dump is available for the following cars:
support BMW (2002 -2009 years) CAS/CAS2/CAS3 DG512 / CAS3 + DP512
support matching BMW (2002 -2009 years) CAS/CAS2/CAS3 DG256 / CAS3 + DP512 key and remote control; the world's unique tec
BMW DASH V2.0
BMW DASH E6x V2.0 is intended to work with BMW 1, 3, 5, 6 and 7 series in "new" chassis.
for chassis E60/E61(5') E63/E64(6') E65/E66(7') E87(1') E90/E91(3')
Features:
Connecting with all electronic control modules in the vehicle.
For all electronic control units reading identification data, sw/hw versions, user information fields.
For all electronic control units read and clear error (DTCs) memories - standart, shadow, history memory.
Possibility to read/program memory of electronic control units (including CAS modules).
Synchronization DME/DDE and CAS.
BMW E65 CAS odometer correction
BMW SCANNER 1.40
Short functions list:
Determination of chassis, model, engine, gearbox and complete set
Searching of all units and reading:
- identification data
- odometer value
- VIN and ADFG
- programming info (UIF)
- errors (DTC)
Reading and saving in files:
- program memory
- EEPROM
- coding data
- amount of DTCs and DTCs shadow-memory
- live data
- programming info (User Info Fields)
Copying ZCS (IKE - EWS) and FA (IKE - LCM) coding
... and other functions in various units
"Unlocked" functions to show possibilities of full version:
DTCs description in DME MS43.0, EWS3, SRS MRS4
Clearing DTCs in same units
EWS-DME synchronization code in DME MS43.0
Live data in DME MS43.0, EWS3, SRS MRS2 and MRS4
Status of all keys in EWS3
EWS3 coding data interpretation
Equipment correction in SRS MRS4

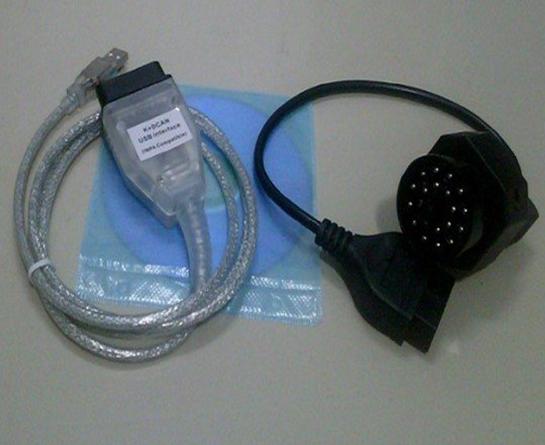

BMW INPA K+CAN
Supported Protocols
1.High-speed D-CAN and PT-CAN (500 kbit/s)
2.Low-speed K-CAN (100 kbit/s)
3.Standard BMW ports (BMW-OBD-interface)
Functions
1.Reading and erasing codes.
2.Live data
3.Component testing
4.Computer programming
5.Adaptation and diagnosing
6.Maintenance procedure explaining
7.Integration of maintenance information
8.Auto-coding and programming of engine, gearbox, airbag, light control computer, engine anti-theft computer etc.
9.Testing some data (i.e. pressure, resistance and current) through the connection with cars. (Optional accessories is needed)
Supported Models
1 Series: E81/E82/E87/E88
3 Series: E30/E36/E46/E90/E91/E92/E93
5 Series: E28/E34/E39/E60/E61
6 Series: E24/E63/E64
7 Series: E23/E32/E38/E65
8 Series: E31
X Series: X3-E83, X5-E53, X5-E70, X5-E71
Z Series: Z1-E30, Z3-E36, Z4-E85/E86, Z5-E52
MINI Series: MINI-R50/R52/R53/R55/R56/R57
Supported Systems
All systems of BMW series and OBD-II diagnostic system, including:
Engine system
Auto Transmission
SRS
ABS
Cruise system
Air-condition system
EWS
LKE
BUS etc.
| |
