SVDI VW/AUDI Vehicle Diagnostic Interface

What is SVDI?

SVDI is the newest car and truck diagnostic adapter for VW/AUDI; it has the same function as the original AVDI.

SVDI is compatible with the following software:

1) VW, Audi, Skoda, Seat software
2) TAG key tool software

SVDI software version:

1) VW, Audi, Skoda, Seat software version: V18.0
2) TAG key tool software version: V5.8

SVDI language:

1) VW, Audi, Skoda, Seat software language available: English, Simplified Chinese, German, Spanish, French, Russian, Italian, Danish, Czech, Bulgarian

2) TAG key tool software language available: English

Attention: SVDI software can only installed on WINDOWS XP SP2/SP3, not working on Windows Vista or Windows 7.

SVDI highlights:

1) Read PIN code via OBD
2) Match key via OBD, generate dealer key
3) Calibrate odometer via OBD
4) Clear airbag (SRS) crash data via OBD
5) Read and write flash memory of Engine via OBD, reset the times of flashing
6) Able to remove the limit to the car TV speed that the MMI-TV system of some car models put on.
7) Calculate code- support both the long and short code.
8) Synchronize KESSY dashboard and ELV (Electric Steering Lock)

Basic Diagnostic function:

1) SVDI Supported protocols: KWP2000(TP2.0, TP1.6), UDS CAN, KWP1281
2) Read the identifier (Identification Number) for electronic control units (ECU)
3) Read trouble codes for electronic control units (ECU)
4) Erase trouble codes for electronic control units (ECU)
5) Output test
6) Coding modules
7) Scan electronic control units (ECU)
8) Broadcast request
9)  Measure value
10) Match channel

SVDI Special Function:

1. CAN dashboard

1) Correct odometer via OBD, the supported car models as follows: VW Golf6, VW Multivan (2009 - ) , VW EOS (2009 - ), VW Caddy (2009 - ), VW Scirocco, VW Polo (2009 - ), VW Bora (2010 - ), Volkswagen Jetta (2010 - ), Volkswagen Passat CC, Volkswagen Amarok, Skoda Octavia II (2009 - ), Skoda Hao Rui (2009 - ), (2009 - ) Skoda Fabia, Skoda Yeti (2009 - ), Seat Leon (2009 - ), SEAT Altea (2009 - ), SEAT Exeo (2009 - ), Seat Ibiza (2009 - )
2) Support VDO instrument cluster (year 2006 - )
3) Read and write the related data in the dashboard
4) Read immobilizer security code
5) Read PIN code and protect component data via OBD for VW Crafter
6) Read and write NEC MCU (year 2009 - ) immobilizer data

 2. EZS – Kessy (Q7/A6/Allroad)

1) Generate dealer key
2)  Read and write EEPROM data from EZS – Kessy(Q7/A6/Allroad).

3. K-Line dashboard

1) With this function you can establish diagnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)
2) Read and correct odometer
3) Read PIN code
4) Read and write EEPROM
5) 5) Read ROM / Flash from the Instrument cluster
6) Automatically erase "DEF trouble" (Audi A4 with Bosch RB8 dashboard)

4.  Engine Control Unit

1) Read EDC17 / MED17 flash memory
2) Read and write flash memory (EDC15, EDC16 all types. Calculate, program and calibrate ME7. 1.1, MED9.x, ME7.5 )
3) Read and write flash calculator(EDC16)
4) Read and write EEPROM(VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.)
5) Read security access code or PIN code (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, EDC17, MED9.x, Simos PPD)
6) Read component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, MED17.5.1, MED 9.x, Simos PPD)
7) Enable / disable immobilizer for EDC15, ME7.x, EDC16
8) Correct odometer for EDC15, EDC16

5. Component Protection Manager

- Component Protection Manager – match, program component protection (Audi A6/Q7/Allroad/A4/A5/Q5)

6. ECU adaptation by OBDII

-Add new engine control units by OBDII - EDC16, EDC17, MED17, MED9, Simos petrol, SIMOS PPD Diesel, ME7.5.20, ME 7.5.30

7. BCM2 - Audi A4/A5/Q5 2007+ key programming

-Program key for A4/A5/Q5 (2007 - ) with the BCM2 module

8. Program steering lock

-After replacing the module of steering lock, you can program steering wheel lock for Volkswagen Touareg / VW Phaeton / Porsche Cayenne / Bentley Continental / Audi A8.

9. TV activation ED1/ED2

-Remove the limit to the car TV speed.

10. Key learning

1) Program key via OBD (With 16 component security bytes) - VW Crafter, Audi R8, VW Golf 6, VW Multivan (2009 - ) , VW EOS (2009 - ) , VW Caddy (2009 - ) , VW Scirocco, VW Polo (2009 - ) , VW Bora (2010 - ) , VW Jetta (2010 - )  Skoda Octavia II (2009 - ) , Skoda Hao Rui (2009 - ) , (2009 - )  Skoda Fabia, Skoda Yeti (2009 - ) , Seat Leon (2009 - ) , SEAT Altea (2009 - ) , SEAT Exeo (2009 - ) , Seat Ibiza (2009 - )
2) Support chip TP22/TP23/TP24/TP25 and 48, and generate as any key as you want.
3) Directly use 48 chip to learn key without generating dealer key for the chip TA2/TA3/TA4/TA5
4) Read the 7th byte security code from the working key (Megamos, Hitag2)
5) Support key learning for Lamborghini Gallardo

11. Dump tool

After the EEPROM of corresponding unit is read out, calculate security access code and correct mileage by the dump tool.

12. Airbag (SRS)

1) Read / write Siemens EEPROM of airbag module (Audi A6/Q7/Allroad, VW Golf5 ..., Skoda Octavia II ..., SEAT Altea ...)
2) Clear airbag crash data.

13. Customize read / write

Customize read and write by computer for a part of units.

14. PIN Converter

15. Service Light Reset

16. Remote Control Programming

17. Navigation

- Enable / Disable navigation system "Eject" button.

18. Cruise Control System

-Enable / Disable cruise control system, modify steering wheel electronics (SWE) system configuration

19. Brake Pedal

TAG Key Tool supported chip:

Megamos 13,
      Megamos 48 (Megacrypt I),
      Megamos 8E (Megacrypt II),
      Texas 4C,
      Texas 4D,
      Temic 11,
      Temic 12,
      T5,
      TK5555,
      Philips PIT - 7930/7931/7935 (PIT),
      Philips HITAG2–7936, 7941, 7942, 7943, 7944, 7945, 7946, 7947, 7953, 7961,
      Hitag-Pro 7937, 7938, 7939, 7952,
      JMA TPX1, TPX2

Highlights:

1) Program the key for the newest BMW F series via reading CAS4 data
2) Generate the chip ID67,ID68,ID70,TP22,TP23,TP24 and so on.
3) Via reading immobilizer unit data, generate the keys for Fiat, Toyota, Ford, BMW, Audi /VW Kessy, Mercedes, Jeep and more.
4) Copy the following chip: Megamos 13, Temic 11/12 and Philips ID33
5) Generate TPX2 chip from The Texas TIRIS 4D chip of Toyota Lexus
6) Generate TPX2 chip from Texas TIRIS 4D chip  (need to connect to internet)
7) Generate TPX1 chip from Texas TIRIS 4C
8) Program key for BMW 7943, 7944

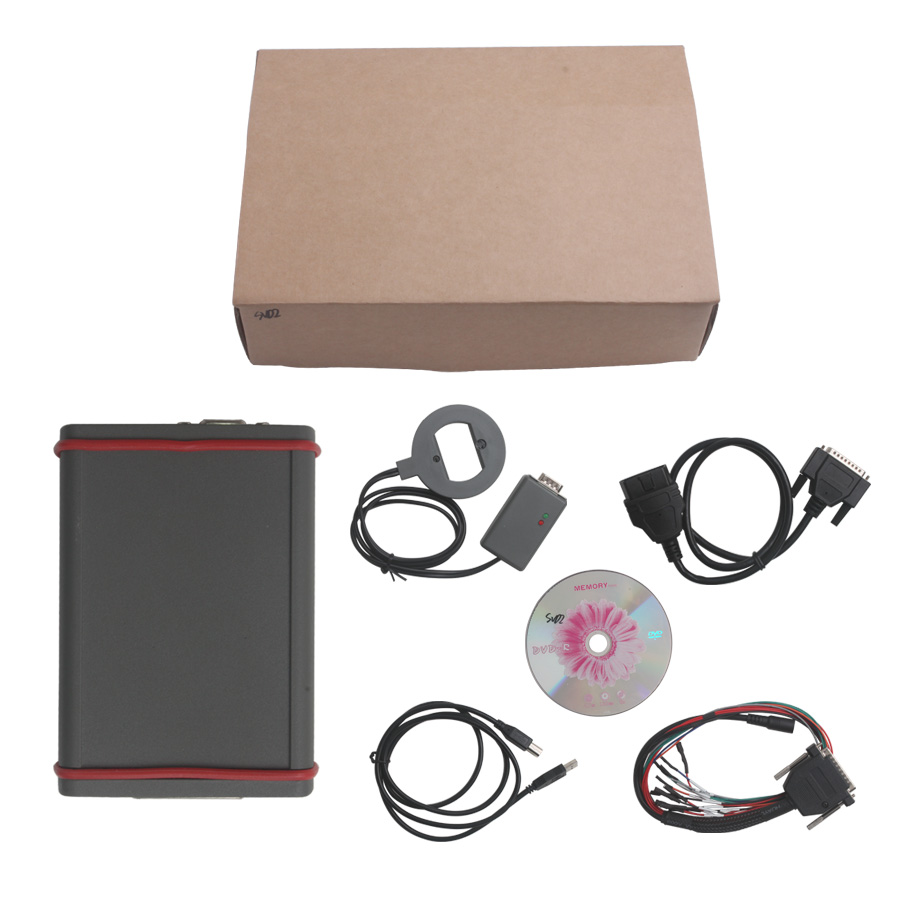

Package including:

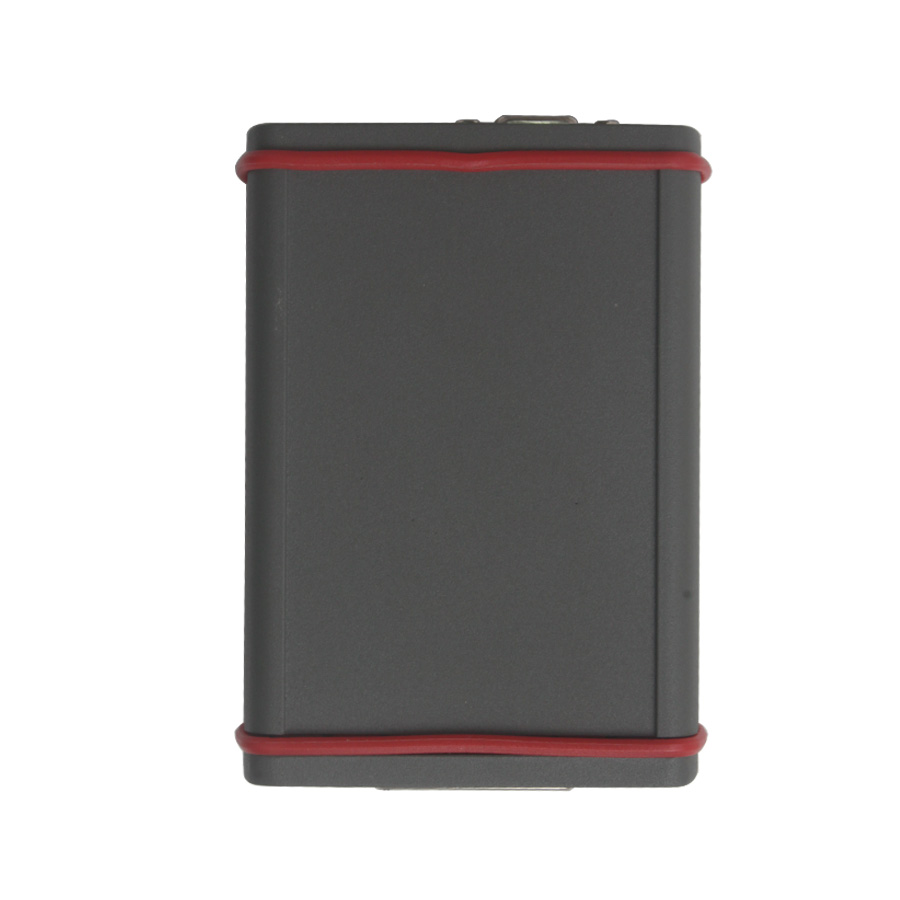

1pc x SVDI Main unit
1pc x OBDII Cable
1pc x Adapter Connect Cable
1pc x TAG Key Tool
1pc x USB Cable
1pc x CD
